Industrial Refrigeration

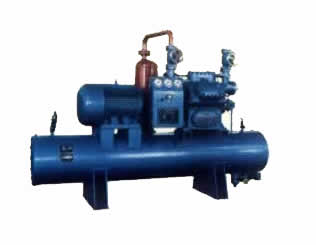

100 Series Condensing Units

Brief

    This series compressors is suitable for all kinds of refrigeration conditions within condensing temperature < 45°C, single stage evaporating temperature +5°C~-30°C.


Application Condition


Refrigerant

Item

Single-stage

R717

Max. exhaust pressure Mpa (gauge pressure)

<=1.5

Max. exhaust temp.°C

<=150

Max. pressure difference

<=1.4




Technic Data

Item
Unit
LN2AZ10-1
LN4AV10
LN6AW10
LN8AS10
Unit
kw
26.7
54
81.4
108
Compressor Type

Z
V
W
VV
Sylinder Diameter
mm
100
Cooling Water Flow Rate
kg/h
compressor 300
condenser 6000
compressor 500
condenser 16000
compressor 750
condenser 18000
compressor 1000
condenser 24000
Syliner Number

2
4
6
8
Motor Motor Power
kg
13
22
37
45
Power Source
v
380
